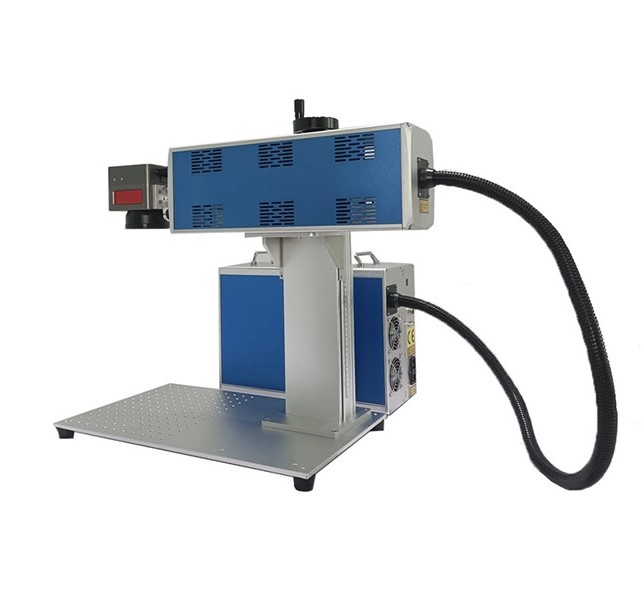

CO2 30W Laser Engraver
Materials that can be engraved:
- plastic (ABS, PVC), acrylic-coated elements, plexiglass, leather, wood, HDF, MDF, plywood, paper, rubber, glass, textiles, and other materials —after doing previous tests.
Technical specification:
- Input Voltage: 110–230 VAC, 50–60 Hz
- Laser Source Power: 30W
- Marking Area: 175 × 175 mm
- Minimum Line Width: 0.1 mm
- Marking Speed (Linear): < 5000 mm/s
- Beam Quality (M): < 1.2
- Minimum Character Size: 1 mm
- Pulse Repetition Frequency: 5–25 kHz
- Laser Wavelength: 10600 nm
- Cooling: Air cooling
- Supported File Formats: BMP, GIF, PLT, PCW, DXF, SHX, TTF, etc.
- Software: EZ Cad (EN)
- Laser Lifespan: 20,000 hours
Included in the Set:
- Laser source
- Foot pedal trigger
- EZCad software (EN)
- Protective safety glasses
Optional Accessories Available:
- Z-axis cylindrical rotary attachment
- Z-axis rotary table attachment
- Automatic pen feeder
- Lenses for changing the working area
- 100W / 200W smoke absorber
Product Description – Laser Engraving Device
The engraving machine allows for marking promotional items with text, graphics, or barcodes, meeting most customer requirements for marking and personalizing various objects such as keychains or wooden products.
The engraver comes with the dedicated EZCAD2 software, which is highly intuitive and easy to use. It allows you to create your own vector graphics projects, as well as import and engrave raster images in .jpg format.
This professional laser engraving machine is air-cooled and can be operated from any computer via a USB connection.
Warranty:
Training and Support:
After purchase, free on-site training is available (travel cost to be arranged depending on distance).
After-sales technical support is provided throughout the entire warranty period.
