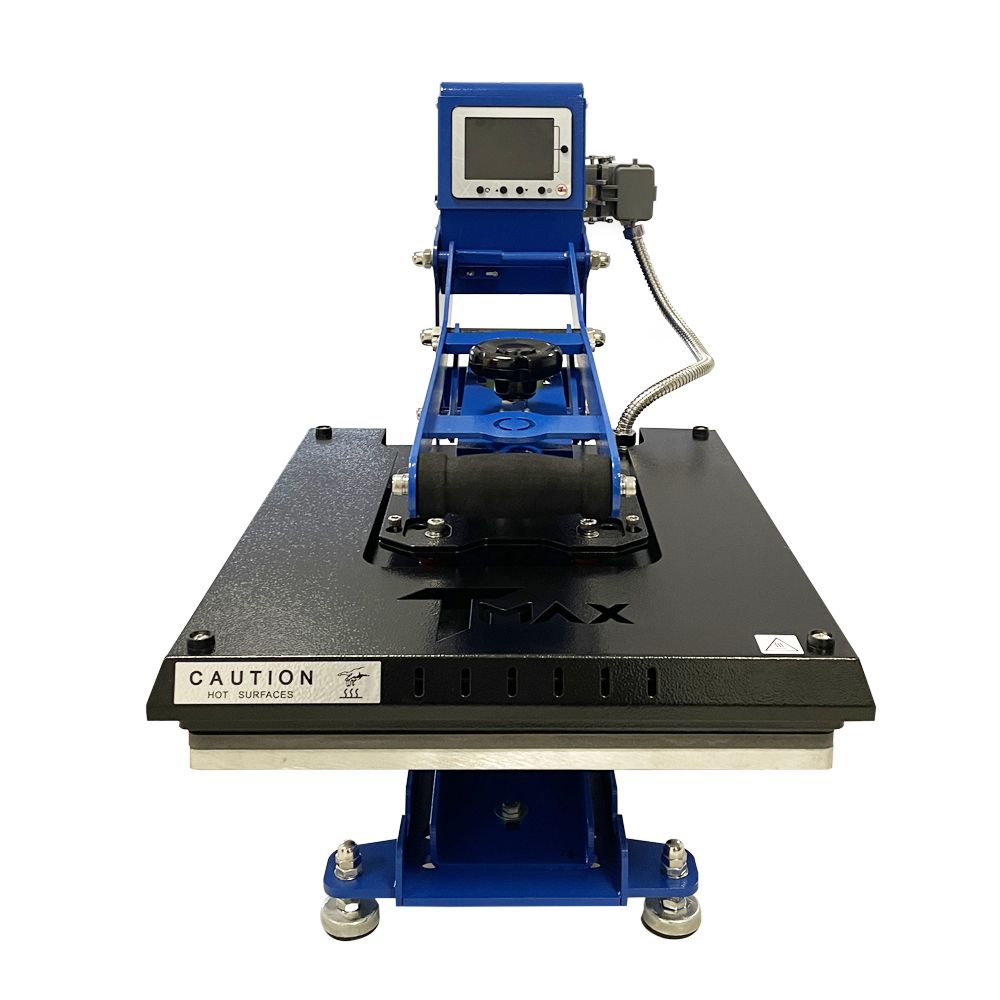

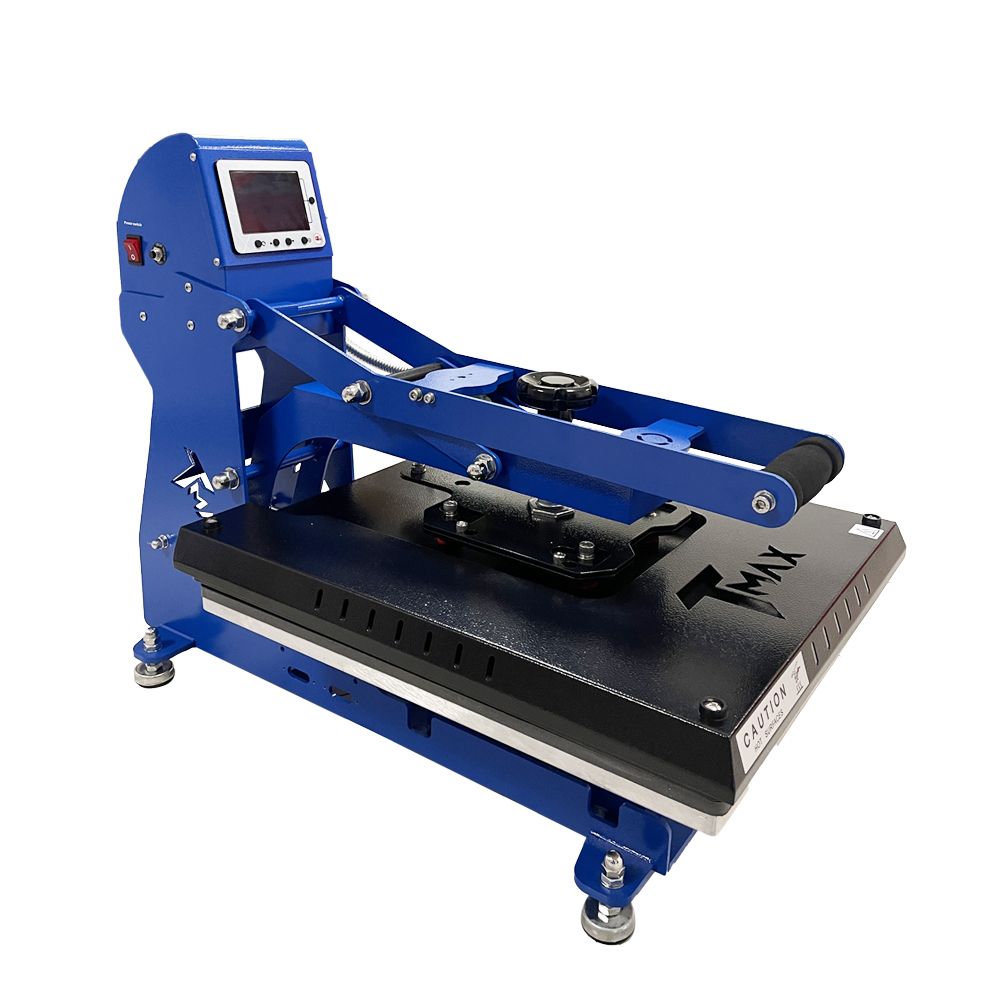

Manual Clamshell Heat Press - 38 x 38 cm
Heat transfer presses are used to transfer graphics to the target substrate using high temperature and pressure. Depending on the size and shape of the printing device, there are transfer presses for flat surfaces (T-shirts, puzzles, bags, etc.), presses for cups, balls, plates or other irregular objects. Depending on the kind of opening, there are manual or automatic presses. This variety gives you a large choice of thermal transfer machines, so you can find the best one, which is suitable to your individual needs.
A clamshell heat press, also known as a clam-style or sandwich-style heat press, is a popular piece of equipment used in the printing, advertising and product personalisation industries. Its distinctive design features a top heating platen that opens upwards on a hinge, creating a mechanism resembling an opening shell. This design provides convenient access to the working area and makes it easier to position products for printing.
Flat heat presses of this type enable precise transfers onto a wide range of materials and promotional products. They are suitable for applying designs using Flex and Flock heat transfer vinyl, DTF transfers and sublimation paper. These presses make it easy to personalise clothing, textiles and other flat products efficiently.
Key Features of the TMax TSM4 Flat Heat Press for Sublimation and Heat Transfer:
- Digital control screen - The large, intuitive display makes it quick and easy to adjust the press operating parameters.
- 3 programmable heating settings - Store up to three heating programs to simplify operation and make it easier to repeat the same printing processes.

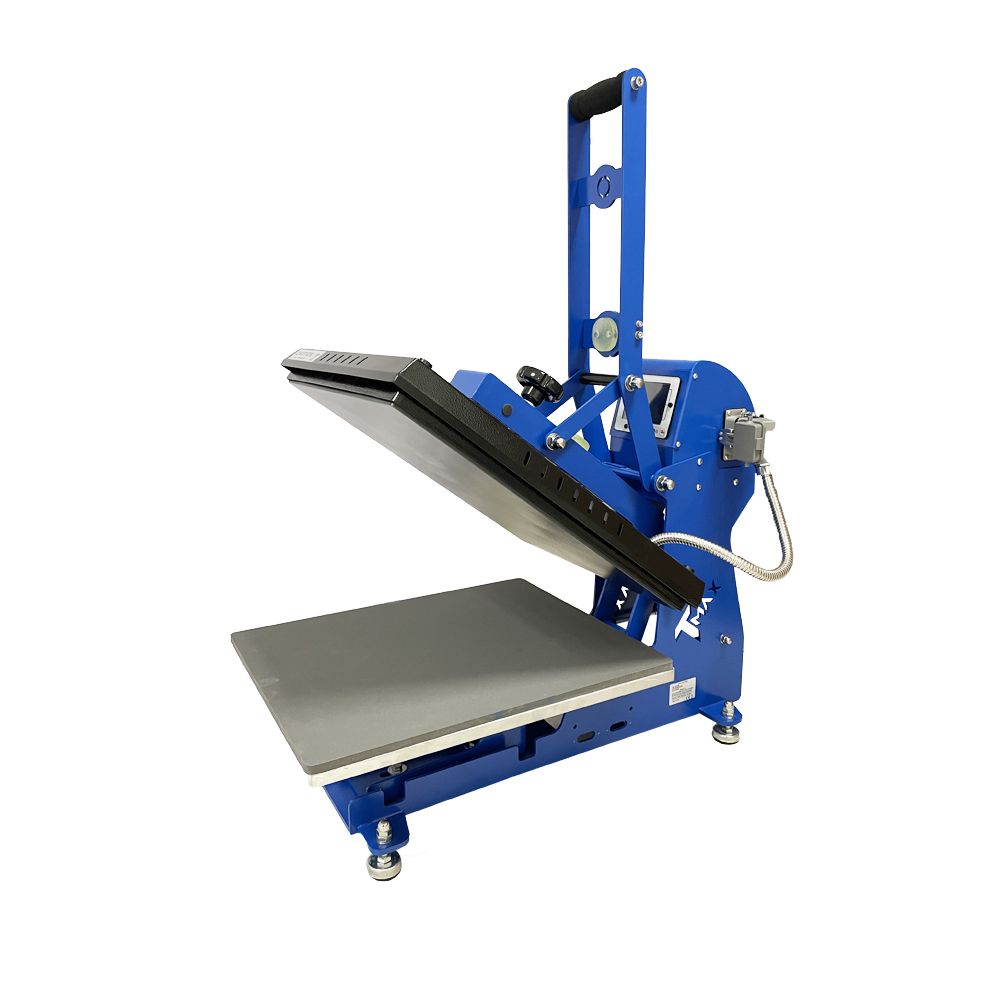

- Manual operation - The top heating platen opens upwards, providing convenient access to the working area and making it easier to position products for printing.
- Designed for small production runs - The press is suitable for promotional product workshops, garment printing businesses and companies handling short production runs.
- Front-loading system - Makes it easier to position items for printing and allows convenient operation even in spaces with limited room.
- U-shaped base - Allows garments to be easily slipped over the lower platen, which is particularly useful when printing on shirts, buttoned polo shirts and other textiles.
- Optional pressure indicator - When fitted with an optional base equipped with a sensor, the press can display the pressure level, helping users monitor the heat transfer process.
- Durable construction - Carefully selected materials and components contribute to the machine's durability and reliable performance during everyday use.
Technical Specifications of the TMax Clamshell Heat Press
- Model: TMax TSM4
- Machine type: Manual heat press with a U-shaped base
- Heating platen size: 38 × 38 cm
- Opening mechanism: Manual, opens upwards
- Pressure adjustment: 0–196 g/cm
- Controls: Digital timer and thermostat
- Heating programs: 3 programmable settings
- Base design: U-shaped base for easier garment positioning on the lower platen
- Machine dimensions (W × H × D): 41.8 × 73 × 59.7 cm
- Weight: 47.7 kg
- Warranty: 12 months; the machine must be returned in its original packaging.
