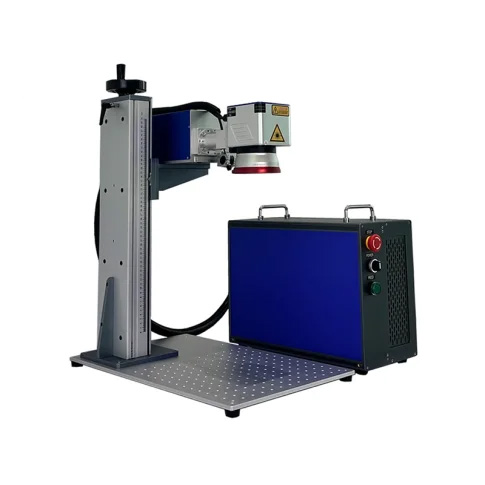

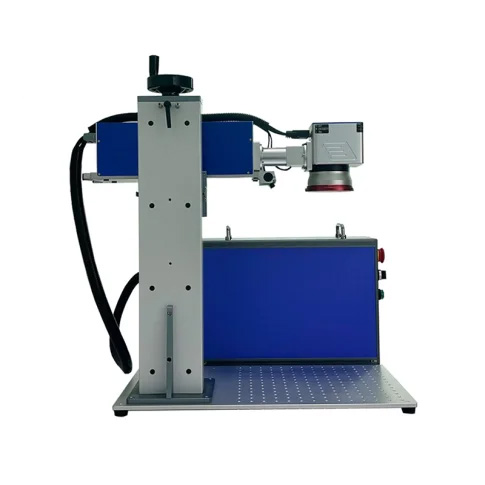

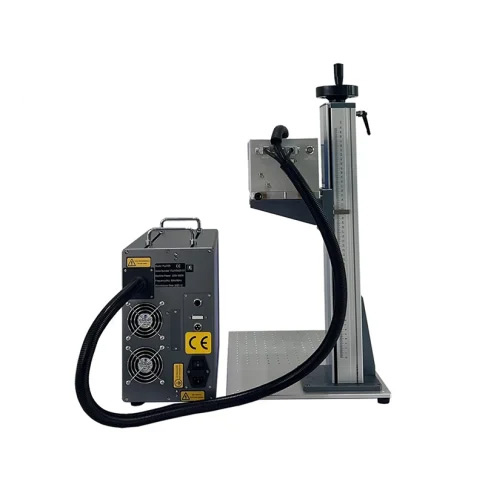

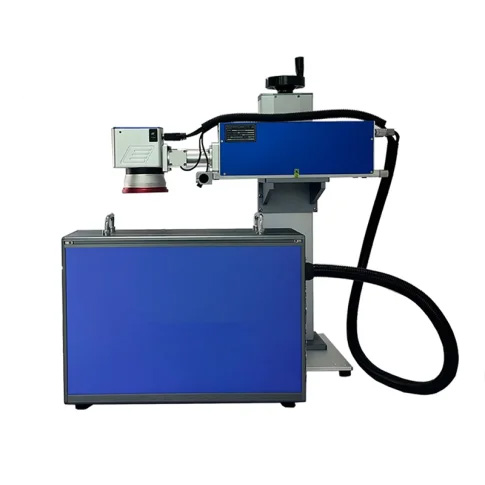

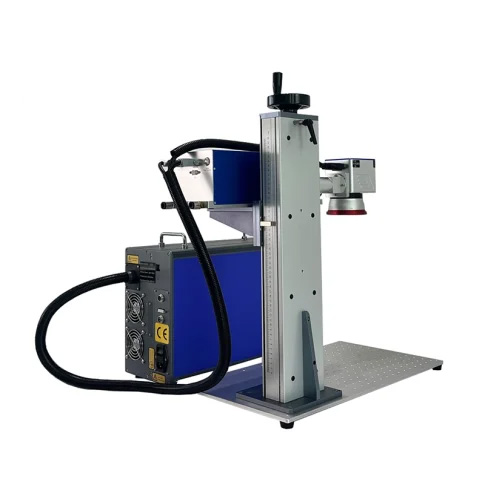

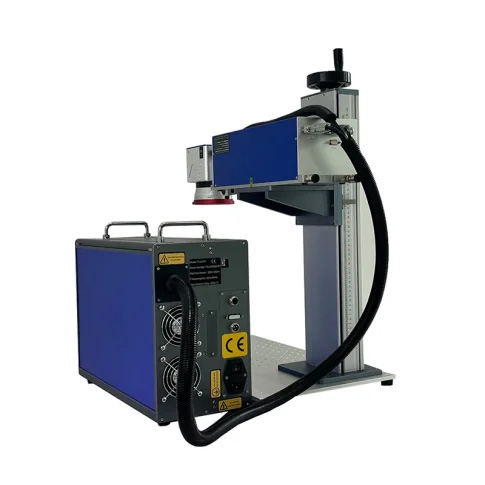

UV Laser Engraver 10W
- non-ferrous metals, precious metals, aluminum, stainless steel, and other metal alloys
Technical specification:
- Input Voltage: 230 VAC, 50-60Hz
- Laser Source Power: GainLaser TR-W-UV10
- Laser Source: UV
- Marking Area: 110x110 mm
- Minimum Line Width: 0,01 mm
- Marking Speed (Linear): <7000 mm/s
- Beam Diameter: ~0,8 mm
- Minimum Character Size: 0,15 mm
- Pulse Repetition Frequency: 1-150 kHz
- Laser wavelength and beam quality m2: 350 nm: 1,2 m2
- Cooling: water-cooled, CWUL-05 chiller unit
- Supported File Formats: AI, PLT, DXF, DST, SVG, NC, G, GBR, BMP, JPG, JPEG,GIF,TGA, PNG, TIF, TIFF
- Software: EZ Cad [EN],
- Power consumption of the source: 80W
- Laser Lifespan: 30.000 godzin
Included in the Set:
- UV 10W Marking Machine
- CWUL-05 Chiller Unit
- Foot Switch
- USB Flash Drive with Software and Drivers

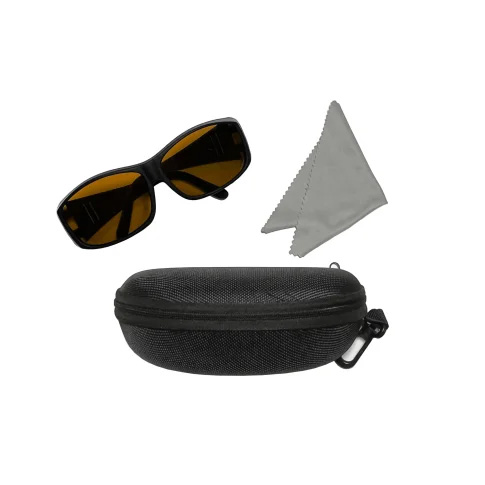

- Protective Glasses
Optional Accessories Available:
- Z-Axis Cylindrical Rotary Attachment
- Z-Axis Rotary Table
- Automatic Pen Feeder
- Lenses of Various Sizes for Changing Working Areas
- 100W/200W Fume Extractor
Advanatges of using laser engraver:
The UV laser engraving device has a wide range of applications.
It is particularly effective where a high level of engraving detail is required, thanks to its precise laser beam with an extremely small diameter. It is the best choice for personalizing promotional gadgets made of thin layers or sensitive materials.
The UV engraver allows for marking promotional items with text, graphics, or barcodes, meeting most client requirements for marking and personalization of various objects such as keychains, nameplates, wooden materials, pens, as well as sanitary equipment like bathtubs, shower trays, or shower mixers.
The marking device comes with the dedicated EZCAD2 software.
This software is very intuitive and easy to use. It allows users to create their own vector graphic designs, as well as import and engrave raster images in JPG format.
This professional UV laser engraving machine is water-cooled.
It can be controlled by any type of computer via a USB connection.
The engraver’s design allows for easy transport of the device and operation even on a desk.
Warranty:
Free training is available after purchase at the customer's location – travel costs for the service technician are negotiable depending on the distance.
Post-sale technical support is provided throughout the entire warranty period.
